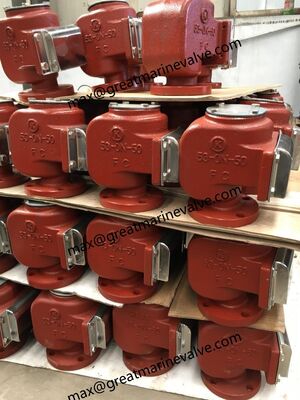

AIR VENT HEAD 5K CAST IRON 53-ON CHINA STOCK

AIR VENT HEAD 5K CAST IRON 53-ON CHINA STOCK
AIR VENT HEAD 5K CAST IRON 53-ON CHINA STOCK AIR VENT HEAD 5K CAST IRON 53-ON CHINA STOCK AIR VENT HEAD 5K CAST IRON 53-ON CHINA STOCK

Gambar besar :  AIR VENT HEAD 5K CAST IRON 53-ON CHINA STOCK

Detail produk:
Nama merek: GMV.OEM
Nomor model: 53-AKTIF
Kontak

AIR VENT HEAD 5K CAST IRON 53-ON CHINA STOCK

Deskripsi

NIIKURA AIR VENT HEAD 53-ON Marine Single Float Disk Side Ventilation Cap | JIS F3012 Standard

The NIIKURA AIR VENT HEAD 53-ON, manufactured by QINGDAO GREAT MARINE MACHINERY CO., LTD (Official Website: www.greatmarinevalve.com), is a premium marine automatic ventilation cap (breather cap/air pipe head) compliant with JIS F3012 and IACS P3 standards. Designed for harsh marine environments, it maintains pressure balance in tanks (oil, fresh water, ballast, sewage) by preventing overpressure/vacuum and blocking seawater/rainwater ingress, ensuring tank system safety and longevity.
IMPA872301 53-ON 5k50
IMPA872302 53-ON 5k65
IMPA872303 53-ON 5k80
IMPA872304 53-ON 5k100
IMPA872305 53-ON 5k125
IMPA872306 53-ON 5k150
IMPA872307 53-ON 5k200

AIR VENT HEAD 5K CAST IRON 53-ON CHINA STOCK 0Key Features & Core Advantages

  • Automatic Anti-Backflow: High-precision SUS304 float disk with snap lip seal. Opens for air circulation normally; instantly seals to prevent backflow in rough seas.
  • Multi-Layer Protection: Integrated flame screen, dust/insect-proof design reduces contamination, corrosion and fire risks.
  • Global Compliance: Adheres to JIS F3012/IACS P3; customizable with CCS, ABS, BV, DNV, LR certifications for global projects.
  • Corrosion-Resistant: Ductile iron (QT450-10) valve body, SUS304 internal parts with anti-corrosion coating for long service life.
  • Easy Installation & Maintenance: Compact side-vent design, JIS 5K flange connection; simple routine checks minimize downtime.

AIR VENT HEAD 5K CAST IRON 53-ON CHINA STOCK 1Technical Specifications

Item
Specification
Product Model
NIIKURA AIR VENT HEAD 53-ON
Standard Compliance
JIS F3012, IACS P3
Nominal Pressure
5K (5kgf/cm²)
Nominal Diameter
DN50 - DN200
Connection Type
Flange Connection (JIS 5K Flange)
Valve Body Material
Cast Iron / Ductile Iron (QT450-10)
Float Disk & Internal Parts Material
SUS304 Stainless Steel
Working Temperature
-20℃ ~ 80℃
Application Pressure Range
-0.02MPa ~ 0.05MPa

Application Scenarios

Widely used in bulk carriers, container ships, oil tankers, yachts, the NIIKURA AIR VENT HEAD 53-ON (manufactured by QINGDAO GREAT MARINE VALVE CO., LTD) is installed at the highest point of vent pipes for:
  • Marine fuel oil tanks
  • Fresh water storage tanks
  • Ballast tanks
  • Sewage tanks
  • Other marine storage tanks that require ventilation and anti-backflow protection

Installation & Maintenance Guidelines

  1. Select matching DN size and JIS 5K flange per tank type (oil/water/ballast).
  2. Install at tank vent pipe highest point, away from fire/heat sources.
  3. Ensure seal ring integrity and even flange bolt tightening during installation.
  4. Regularly check float disk flexibility and replace aged seals timely.
  5. Clean ventilation ports to maintain unobstructed air flow.

Why Choose NIIKURA AIR VENT HEAD 53-ON Manufactured by QINGDAO GREAT MARINE VALVE CO., LTD?

AIR VENT HEAD 5K CAST IRON 53-ON CHINA STOCK 2As a professional marine equipment manufacturer, QINGDAO GREAT MARINE VALVE CO., LTD specializes in NIIKURA AIR VENT HEAD 53-ON R&D and production. Our products meet JIS F3012/IACS P3 standards with strict quality control, offering customizable certifications, factory-direct prices, flexible terms (MOQ 1 Pc) and 1-Year Warranty. We provide tailored solutions for shipyards, distributors and maintenance companies worldwide.

AIR VENT HEAD 5K CAST IRON 53-ON CHINA STOCK 3

AIRVENT HEAD 5K 65MM CAST IRON 53-ON CHINA STOCK
AIRVENT HEAD 5K 80MM CAST IRON 53-ON CHINA STOCK
AIRVENT HEAD 5K 100MM CAST IRON 53-ON CHINA STOCK
AIRVENT HEAD 5K 125MM CAST IRON 53-ON CHINA STOCK
AIRVENT HEAD 5K 200MM CAST IRON 53-ON CHINA STOCK



Related Products:

1,53C/53CW Marine Cast Iron Flange Air Vent Head 5K
2,53P/53PW Marine Cast Iron Flange Air Vent Head 5K
3,53-ON/OS Marine Cast Iron Flange Air Vent Head 5K
4,JIS 53-SDT-A08 Marine Cast Iron Double Flange Air Vent Head 5K/10K
5,JIS-KS91A-121 Marine Cast Iron Flange Air Vent Head 5K/10K
6,JIS FS Marine Cast Iron Float Ball Type Air Vent head 5K/10K
7,DIN Marine Cast Iron Flange Air Vent Head PN6/PN10
8,DIN Marine Steel Welding Air Vent Head PN10

AIR VENT HEAD 5K CAST IRON 53-ON CHINA STOCK 4
9, Marine Aluminum Float Ball Air Vent head 5K/10K
10,CB457-94 Marine Oil Tank Air Pipe Head PN10
11,CB/T3594-94 A/AS Marine Cap Type Air Vent Head PN10
12,CB/T3594-94 B/BS Marine Gooseneck Air Vent Head PN10
13,CB/T3594-94 C/CS Marine Sounding Air Vent Head PN10
14,CB/T3594-94 D/DS Marine Floating Oil Tank Air Vent Head PN10
15,CB/T3594-94 E/ES Marine Floating Bilge Tank Air Vent Head PN10
16,CB/T3594-94 FS Marine Ball Float Oil&Bilge Tank Air Vent Head PN10
17,CB604-93 Oil Tank Air Vent Head Flame Screen
18,CBM1067-81 A Marine Cap Air Vent Head
19,CBM1067-81 BI/BII Marine Gooseneck Air Vent Head
20,CBM1067-81 C Marine Injection Air Pipe Head
21,CBM1105-82 Marine Oil Tank Air Pipe Head
22,CBM1106-82 Marine Bilge Tank Air Pipe Head
